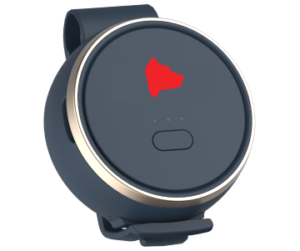

Fidelidade 4G
(North America)
Getting Started
Charge your device. Charged the device for 2hrs before the first use

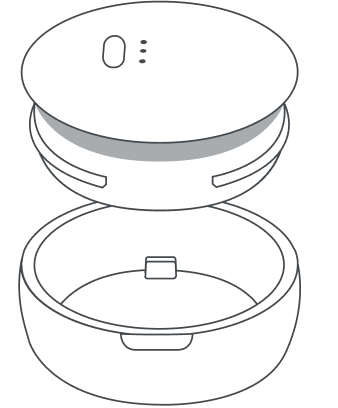

Open the device and start Fidelidade ng. In order to check if the device is on, please press Short on the button - Green light should appear if not - press Long 5s on the button to switch the device on (Switch off - Long 3S press on the button).
Button Functions
1.1 ON/OFF BUTTON
Press and hold the power button for 5s to begin GPS positioning.
Press and hold the power button for 7s to reset GPS positioning.
Please note: If the green light flashes, the tracker is ON. If no light comes on, the tracker is OFF.
1.2 SOS BUTTON
Short triple press on the main button.
2. CHARGE DEVICE
Plug charging cable to the magnetic socket in the back of the device, charging can take up to 2 hours (till the green led gets solid)
Device Lights
Device is starting up
(long press on power button)
Device is powering off
(press the power button for 35)
Device is online
(single press on power button)
Device is on but offline
(single press on power button)

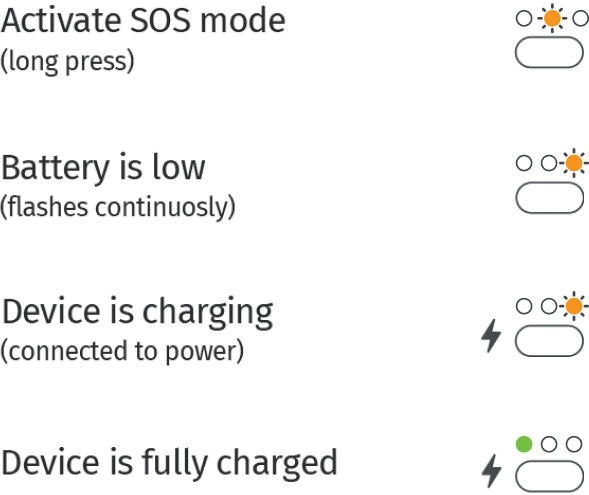

Activate SOS mode
(long press)
Battery is low
(flashes continuosly)
Device is charging
(connected to power)
Device is fully charged

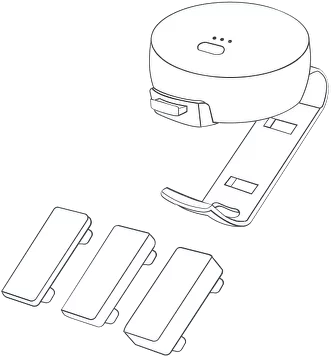

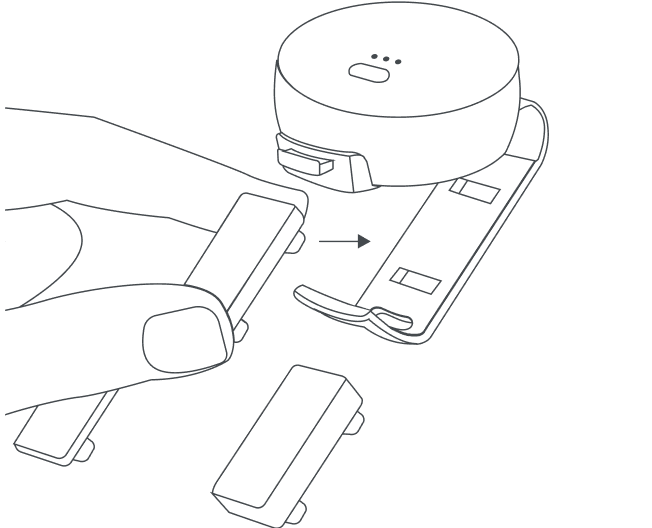

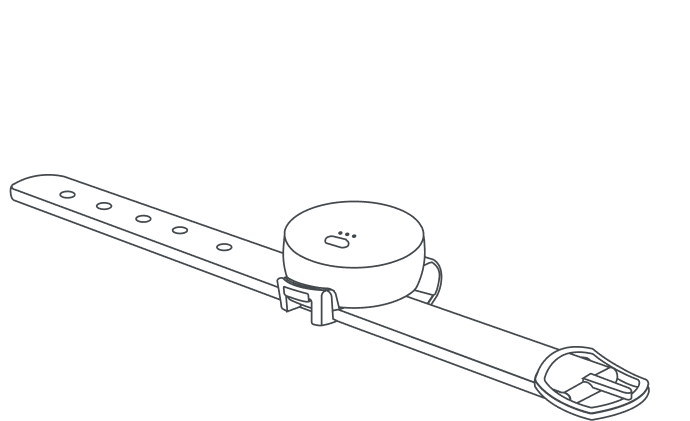

Device Clips
Find Device Details
How to find device details?
QR code / Device ID & MEI
QR code can be found in the side of the box and under the battery.

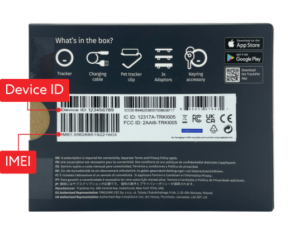

1. Back of the box

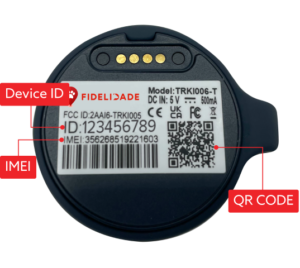

2. Back of the device
